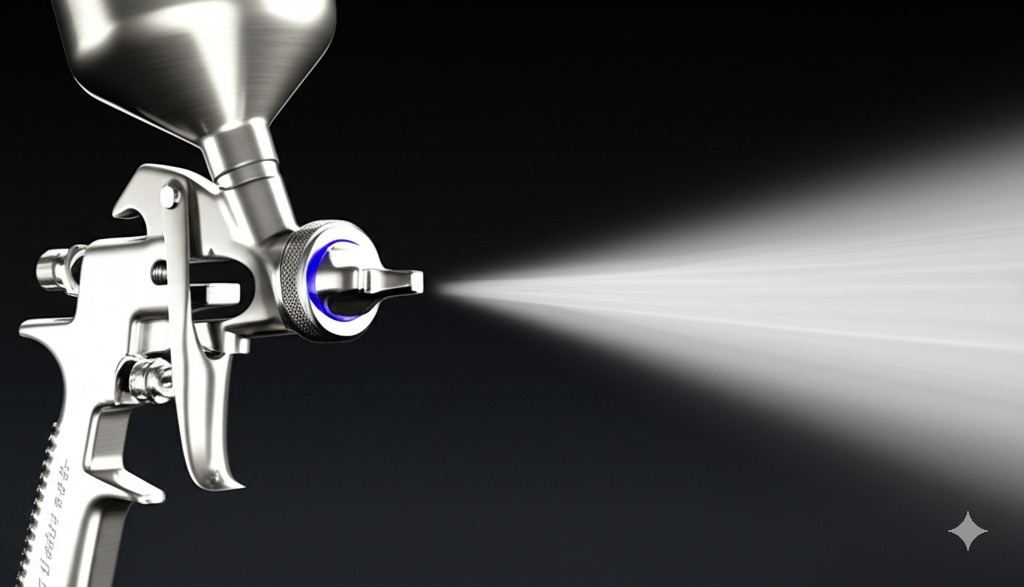

High-Performance Spray Guns: Engineering Precision with VIGA & PILOT

At VIGA, we are dedicated to engineering high-performance spray guns that deliver precision, durability, and superior finishes across industries such as painting and industrial coatings. While a spray gun may seem simple, assembling a high-performance model requires meticulous engineering and more than a hundred individual components. Each element plays a crucial role in achieving the accuracy and quality that professionals demand. Understanding the essential components of a spray gun helps users make informed purchasing decisions and ensures proper maintenance for long-term performance.

Core Components of a Paint Spray Gun

1. Components of Atomization

The performance and finish quality of a spray gun depends heavily on atomization components, which include:

Air Cap: Shapes and directs the spray pattern.
Nozzle: Controls paint flow and atomization quality.
Fluid Needle (with Needle Seat and Sleeve): Regulates paint flow in coordination with the air cap and nozzle.

At VIGA and PILOT, we ensure micron-level precision using CNC machining, which improves spray consistency and minimizes material waste.

2. Components of the Fluid Packing Nut Set

This set prevents paint leakage from the needle and includes:

Needle Seal Tightening Gasket: Ensures a tight seal around the needle.
Needle Seal Tightening Screw: Adjusts the seal’s tension.
Spring: Maintains optimal operating pressure.

Because the paint needle moves constantly, wear and tear are inevitable. However, PILOT designs these components for easy replacement, ensuring seamless operation without professional assistance.

3. Components of Air Adjustment

These components regulate airflow, impacting efficiency and spray consistency:

Airflow Adjustment Screw (Knob): Manually controls airflow.
Airflow Adjustment Seat: Secures the adjusting mechanism.
Needle, Spring, and Sealing Elements: Ensure smooth airflow regulation.

Professionals typically set airflow to its maximum and attach an air pressure gauge at the gun’s tail for precise inlet pressure control. VIGA along with Pilot designs its air adjustment system to optimize accuracy and efficiency.

4. Components of Fluid Adjustment

These elements regulate paint flow and output:

Paint Flow Adjustment Screw (Knob): Modifies paint release volume.
Paint Flow Adjustment Seat: Supports the adjustment mechanism.
Spring: Provides tension for precise adjustments.

With VIGA and Pilot technology, users can fine-tune the coating thickness, ensuring optimal coverage while minimizing overspray.

5. Components of Spray Width Adjustment

Spray width control is crucial for various applications and is adjusted by:

Spray Width Adjustment Screw (Knob): Modifies the spread of the paint spray.

A wider spray width efficiently covers large surfaces, while a narrower width is ideal for detailed work. VIGA offers easy-to-adjust mechanisms that enhance adaptability for diverse tasks.

6. Components of Air Valves

These components regulate compressed air flow, affecting the spray gun’s responsiveness:

Valve Seat and Sleeve: Control air movement within the gun.
Needle and Spring: Manage airflow opening and closing.
Sealing Components: Maintain consistent pressure and prevent leaks.

A well-engineered air valve system enhances the spray gun’s tactile feel while reducing maintenance needs. VIGA and PILOT air valve designs focus on longevity, ensuring reduced wear and cost savings.

Providing Excellence in Spray Gun Manufacturing

As a leader of the Distribution House of custom and high-end spray guns, VIGA ensures:

Precision Engineering: Each component undergoes rigorous quality control for reliable performance.
Durability: High-grade materials and advanced machining techniques extend component lifespan.
User-Friendly Maintenance: Our spray guns are designed for easy part replacement, minimizing downtime and service costs.

By maintaining full control over the manufacturing process, VIGA guarantees that every spray gun meets the highest industry standards, providing professionals worldwide with dependable and consistent results.

Conclusion

A high-performance spray gun is more than just a tool—it is a precisely calibrated system where every component plays a crucial role. Understanding atomization, fluid, air, and adjustment components allows users to optimize efficiency and maintain their equipment properly. Investing in a PILOT spray gun from VIGA means choosing superior engineering, durability, and ease of maintenance, ensuring that every project—from automotive refinishing to industrial coatings—achieves flawless results.

With the right knowledge and equipment, achieving a perfect finish has never been easier!
