Needel Valve

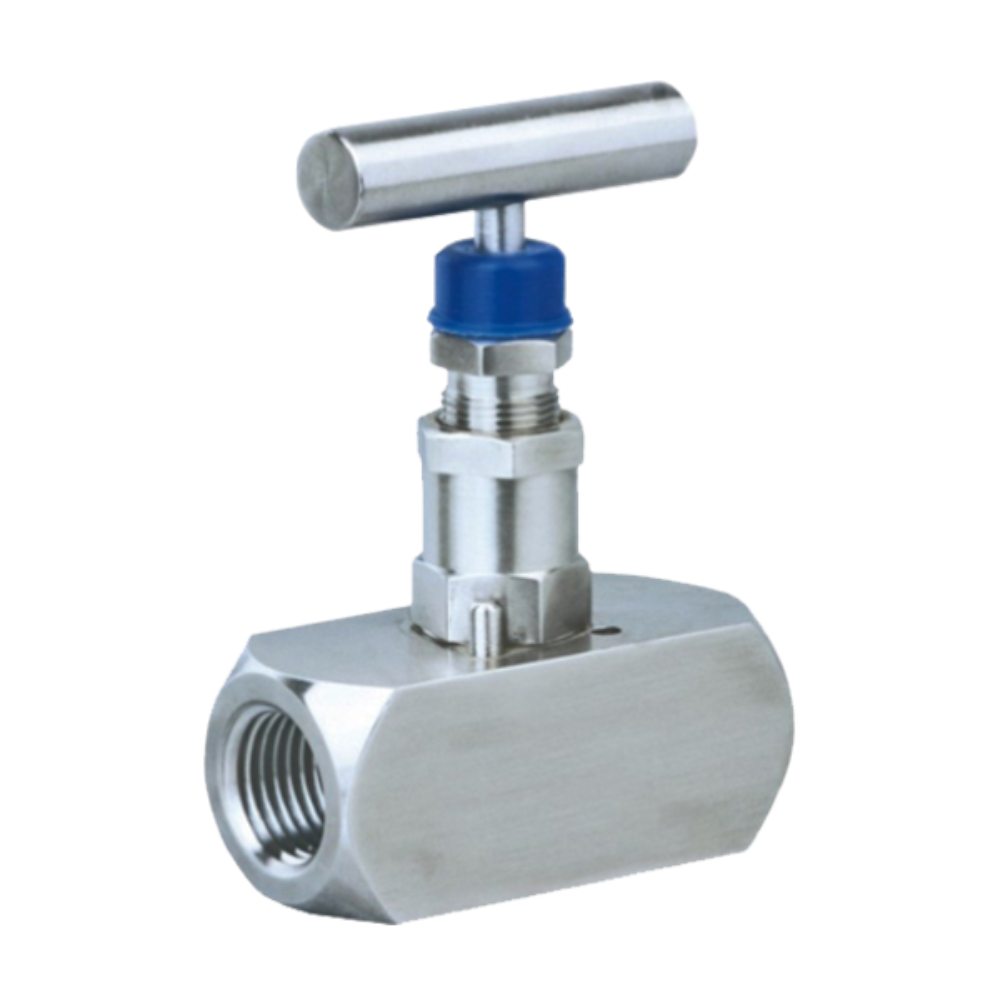

Needle Valve (NV1)

Description:
The NV1 is a type of needle valve designed for precise flow control.

Pressure Range:
It can handle pressures up to 400 bar (6000 psi).

Wetted Materials:
The materials that come into contact with the fluid include stainless steel (SS316, SS316L), Monel, and Hastelloy C.

Applications:

  • Used to isolate instruments from service lines.
  • Suitable for high-pressure lines.
  • Applicable for both liquid and vapor services.
  • Commonly employed in the process industry, power plants, chemical and petrochemical sectors, as well as offshore and onshore operations, and oil and gas refineries.

Features:

  • Manufactured according to industrial standards.
  • Offers complete isolation or throttling of the flow.
  • Ensures perfect alignment for a secure, air-tight shut-off.
  • Comes with an optional vent plug for easy draining.
  • Designed for installation below pressure measuring instruments.
  • Available in stainless steel and other high-performance materials.
