Pressure Limiter / Gauge Saver

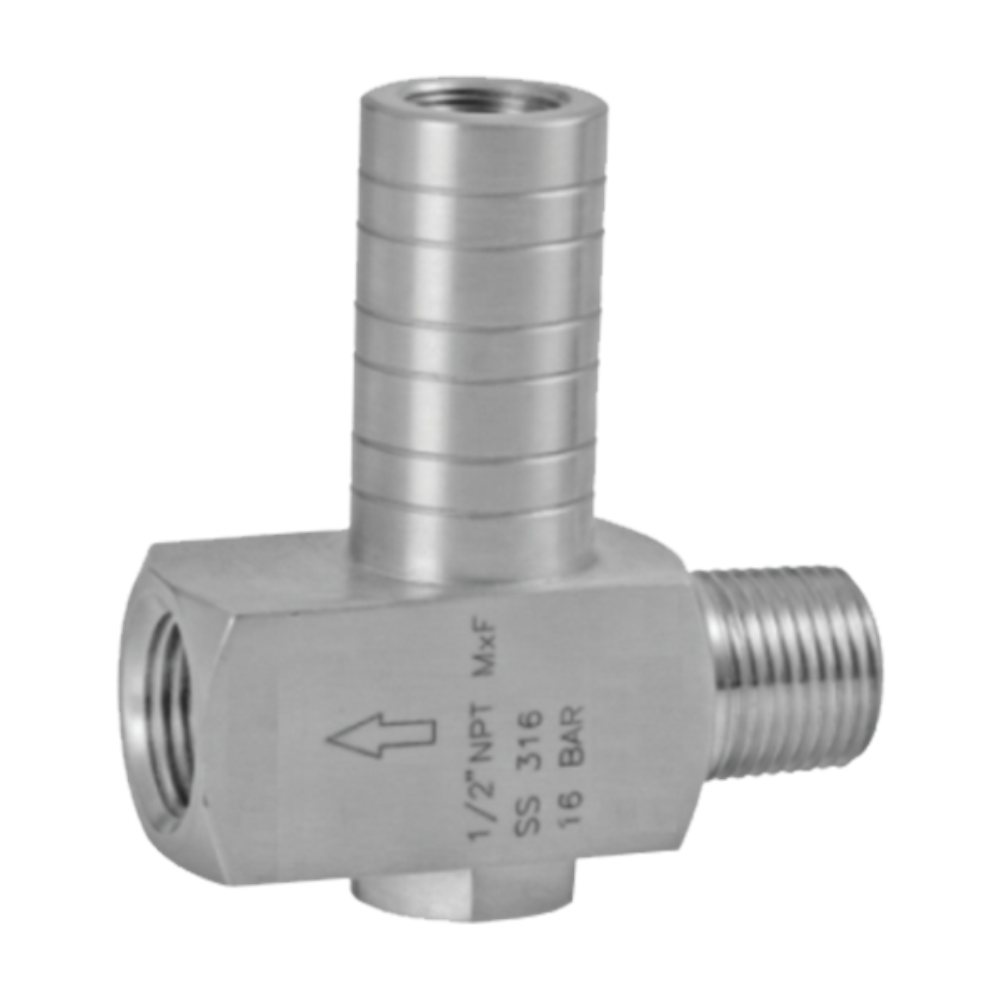

PL1 Pressure Limiter/Gauge Saver – Precision Over-Pressure Protection for Industrial Applications

Description:
The PL1 Pressure Limiter, also known as a Gauge Saver, is designed to protect sensitive pressure instruments from over-pressure and sudden spikes in demanding environments. Built with a compact, all-metal body, the PL1 is ideal for process and power plants, refineries, mining, and other industrial settings. Its adjustable pressure range from 1 to 400 bar (15 to 6000 psi) allows for precise pressure control, making it versatile across various applications. Constructed from durable materials such as stainless steel, Monel, and Hastelloy-C, the PL1 is engineered for resilience in high-stress conditions.

Pressure Rating:

  • Up to 400 bar or 6000 psi @ 100°C (212°F)

Adjustable Range:

  • From 1 to 400 bar (15 to 6000 psi)

Material Options:

  • Stainless Steel 316
  • Stainless Steel 316L
  • Monel
  • Hastelloy-C

Applications:

  • Process Plants
  • Power Plants
  • Chemical and Petrochemical Industries
  • Offshore and Onshore Refineries
  • Mining
  • Machine and Apparatus Construction
  • Compact Metal Design: Sturdy and space-saving design, ideal for installation in compact industrial setups.
  • Wide Adjustable Pressure Range: Offers adjustable pressure limits, enabling protection across various operating conditions.
  • Reliable Over-Pressure Protection: Effectively limits excessive pressure and blocks pressure surges beyond set values, safeguarding sensitive instruments.
  • Stainless Steel Construction: Available in corrosion-resistant stainless steel, with Monel and Hastelloy-C options for additional durability.
  • Automatic Pressure Normalization: Isolates higher pressure levels until they return to a safe range, ensuring accurate low and high-pressure readings.

Choose the PL1 Pressure Limiter/Gauge Saver for consistent pressure control and reliable instrument protection in high-demand industrial environments.
