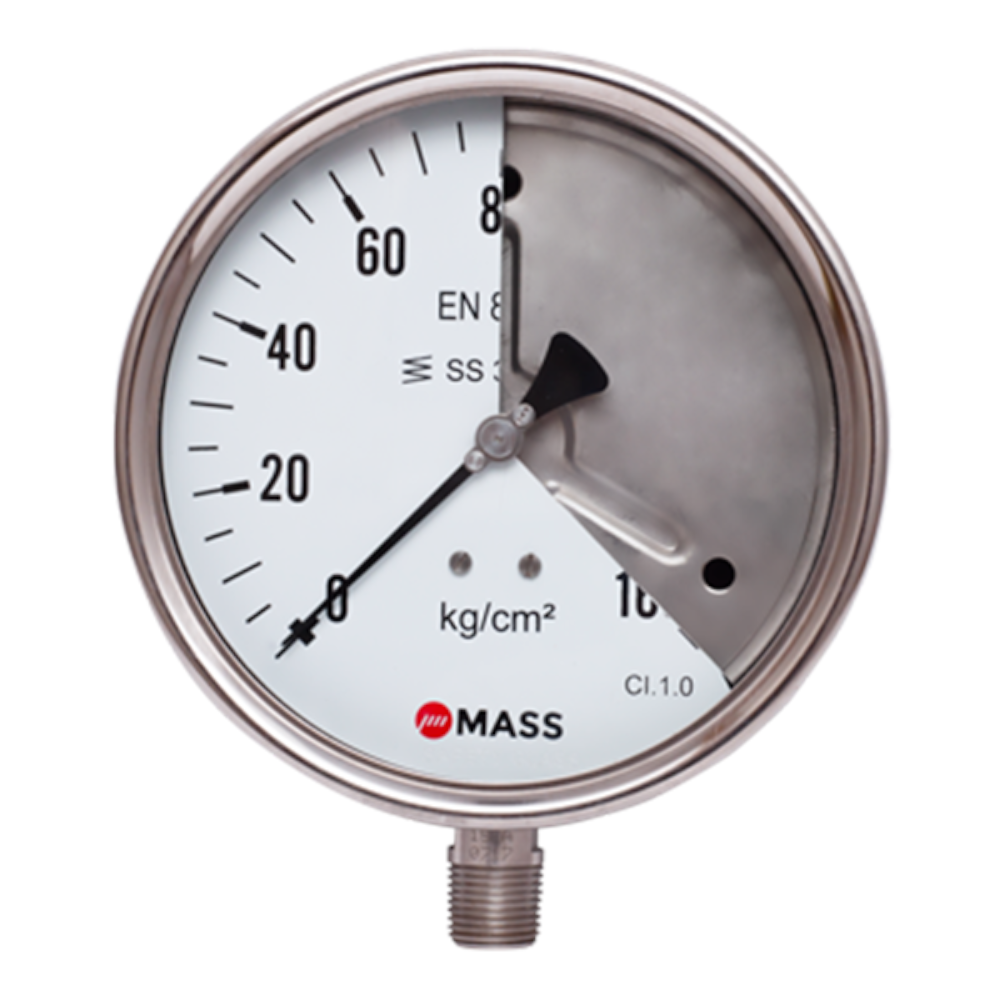

SFS Solid Front Process Pressure Gauge

SFS Solid Front Process Pressure Gauge – Ultimate Durability for High-Precision Monitoring

Description:
The SFS Solid Front Process Pressure Gauge is engineered to deliver precise and reliable pressure measurements in demanding industrial applications. Available in sizes ranging from 100mm to 150mm, with an impressive accuracy of up to 0.5% (optional for 150mm), this gauge handles pressures from vacuum to 36,000 psi (2500 bar). Designed with a robust solid-front construction and welded socket and case, it provides enhanced safety and durability. Ideal for use in chemical, petrochemical, power generation, and machinery industries, the SFS gauge meets international standards for quality and performance.

Size Options:

  • 100mm, 115mm, 150mm

Accuracy:

  • 1% (standard)
  • Optional 0.5% (150mm)

Pressure Range:

  • Vacuum to 36,000 psi (Vac to 2500 bar)

Material Options:

  • SS316
  • SS316L
  • Monel
  • Ni Span

Applications:

  • Chemical & Petrochemical Industries
  • Refineries
  • Fertilizer Plants
  • Thermal & Nuclear Power Generation
  • Machinery & Construction Apparatus
  • Solid Front Type Construction: Ensures safety by separating the operator from the pressure system.
  • Versatile Filling Options: Available in dry or liquid-filled configurations to suit varied environments.
  • Welded Socket and Case: Enhances structural integrity for reliable performance under high-pressure conditions.
  • External Zero Adjustments: Simplifies calibration for precise readings.
  • Overload Protection: Handles up to 130% of full-scale pressure, ensuring durability in extreme conditions.
  • Optional Electric Contacts: Offers added functionality for automated monitoring and control.
  • Premium Measuring System Materials: Constructed from SS316L, Monel, or Ni Span for enhanced compatibility and longevity.
  • International Compliance: Meets ASME B40.1, EN837-1, and IS-3624 standards for quality and safety.

Choose the SFS Solid Front Process Pressure Gauge for robust, precise, and safe pressure monitoring in high-demand industrial applications.
