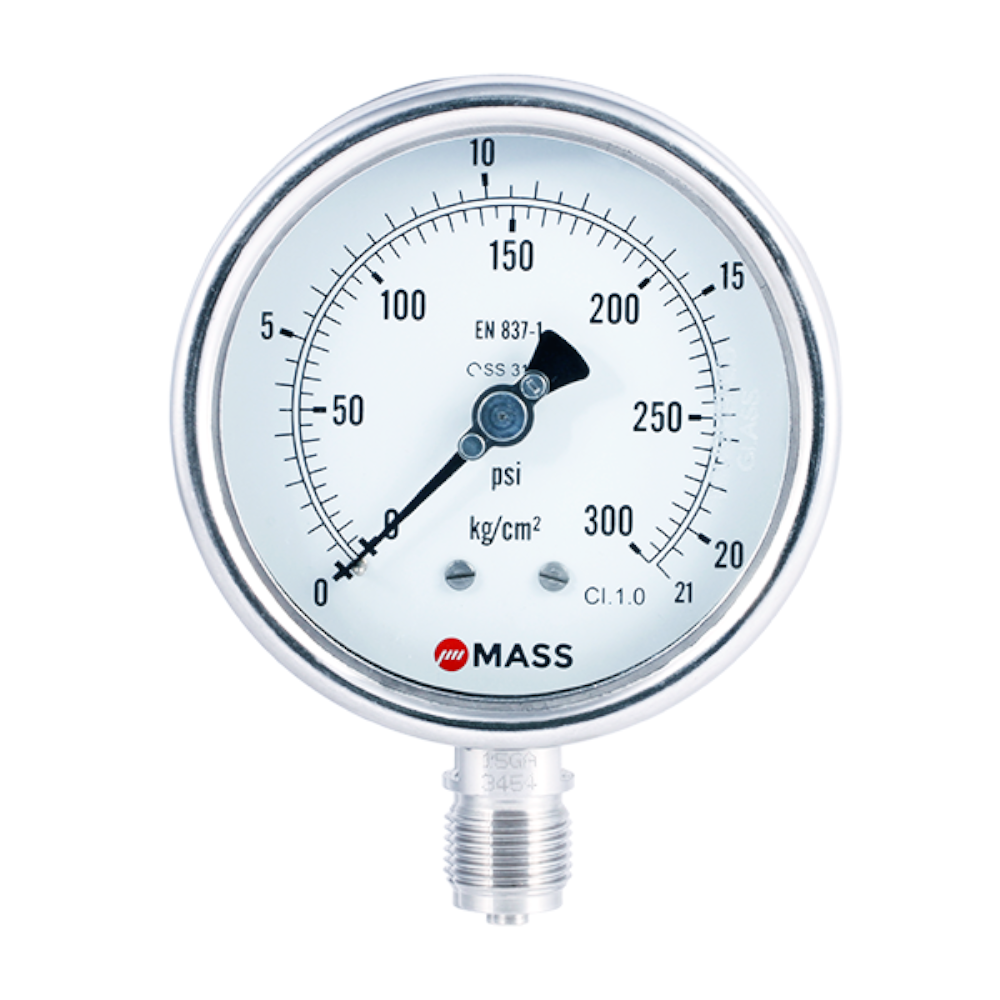

ZPS Process Pressure Gauge

ZPS Process Pressure Gauge – Reliable Performance for Critical Industrial Applications

Description:
The ZPS Process Pressure Gauge is a robust and precise instrument designed for demanding industrial environments. Available in multiple sizes (100mm, 115mm, and 150mm), this gauge offers an accuracy of up to 0.5% (optional) and a wide pressure range from vacuum to 15000 psi (1000 bar). Constructed from premium materials such as SS316, SS316L, and Monel, the ZPS gauge ensures durability and long-lasting performance in chemical plants, refineries, power generation, and other heavy-duty applications. Its compliance with ASME B40.1, EN837-1, and IS-3624 standards guarantees reliable operation and safety.

Size Options:

  • 100mm, 115mm, 150mm

Accuracy:

  • 1% standard
  • Optional 0.5% for 150mm and 250mm models

Pressure Range:

  • From Vacuum to 15000 psi (Vac to 1000 bar)

Material Options:

  • SS316
  • SS316L
  • Monel

Applications:

  • Chemical & Petrochemical Industries
  • Refineries
  • Fertilizer Plants
  • Thermal & Nuclear Power Generation
  • Machinery & Construction Apparatus
  • Versatile Filling Options: Available in dry and liquid-filled configurations to suit various operational requirements.
  • Welded Socket and Case: Ensures leak-proof operation and enhanced durability.
  • External Zero Adjustment: Facilitates easy calibration and maintenance.
  • Overload Protection: Offers overload protection up to 130% of the scale, enhancing instrument safety and longevity.
  • Premium Measuring System: Built with SS316L or Monel for superior corrosion resistance and reliability.
  • Standards Compliance: Adheres to ASME B40.1, EN837-1, and IS-3624 standards for consistent performance and quality assurance.

Opt for the ZPS Process Pressure Gauge to achieve accurate and reliable pressure monitoring in challenging industrial environments.
