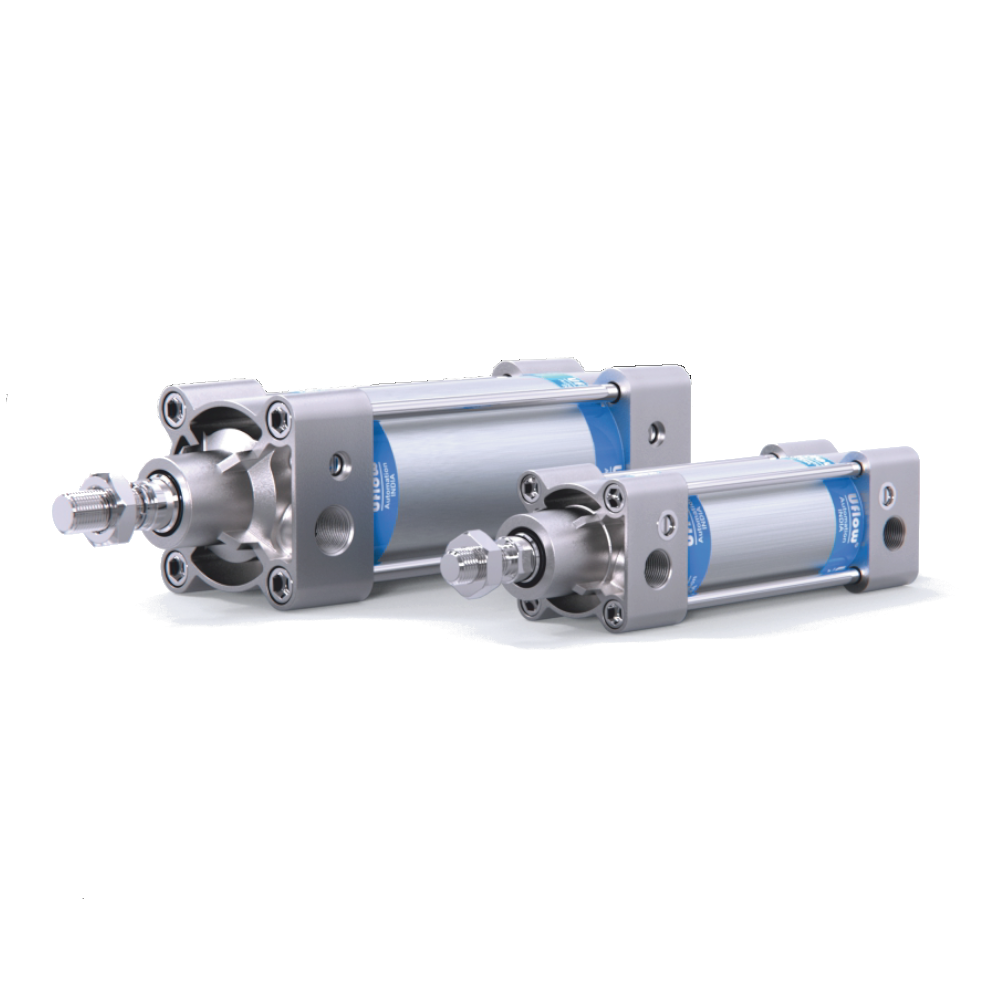

Pneumatic Tie Rod Cylinder – CS4 Series

Description:
The CS4 Series Pneumatic Tie Rod Cylinder is engineered for reliable and versatile performance across a wide range of industrial applications. Designed to operate with compressed air – filtered and lubricated, it offers exceptional durability and precision. Available in multiple bore sizes and mounting options, the CS4 series is suitable for both regular and high-temperature applications, making it a highly adaptable solution for demanding environments.

Key Specifications:

  • Cylinder Bore (Ø): 32, 40, 50, 63, 80, 100, 125, 160, 200, 250 mm
  • Cushion Stroke: 21, 23, 28, 40, 50 mm
  • Standard Strokes: 25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500 mm
  • Media: Compressed air – filtered and lubricated
  • Working Pressure: 0.5 – 10 bar
  • Medium Temperature:
    • Regular: +5°C to +60°C
    • High Temperature: +5°C to +150°C Max

Materials of Construction:

  • Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High Temperature)

Mounting Options:

  • Foot Mounting
  • Front Flange / Rear Flange
  • Male Clevis / Female Clevis
  • Center Trunnion / Front Trunnion / Rear Trunnion
  • Female Clevis (King Pin)

Accessories:

  • Clevis Foot Bracket
  • Wall Mounting Bracket
  • Trunnion Bracket
  • Rod End Fork
  • Rod End Aligner
  • Rod End Spherical Eye

Applications:
The CS4 Series Pneumatic Tie Rod Cylinder is ideal for use in:

  • Industrial automation
  • Material handling systems
  • Packaging machinery
  • High-temperature and precision applications

For precise, durable, and adaptable performance, the CS4 Series Pneumatic Tie Rod Cylinder is the perfect choice for your pneumatic system needs.

Optimize your operations with CS4 Series Cylinders that deliver high performance, flexibility, and durability!

  • Adjustable Cushioning: Adjustable cushioning at both ends with elastomer pads for smoother operation.
  • Variety of Mounting Options: Offers wide varieties of mountings for versatile installations.
  • High-Temperature Compatibility: Optional Viton seals for high-temperature applications up to 150°C.
  • Corrosion Resistance: Optional non-corrosive stainless steel piston rod and lock nut (SS304) for enhanced durability.
