Uflow Solenoid Coils

Uflow Solenoid Coils – Versatile and Durable Solutions

Description:
Uflow Solenoid Coils are precision-engineered solutions designed for seamless operation in demanding industrial environments. With epoxy-molded construction, robust IP-67 flame-proof and IP-68 weather-proof enclosures, and energy-efficient options, these solenoid coils deliver reliability and performance across diverse applications.

Key Specifications

Coil Design & Features

  • Construction: Epoxy-molded, metallic round shape with an LED indicator for enhanced visibility.
  • Protection Grades:
    • IP-67: Flame-proof enclosure, resistant to immersion up to 1 meter.

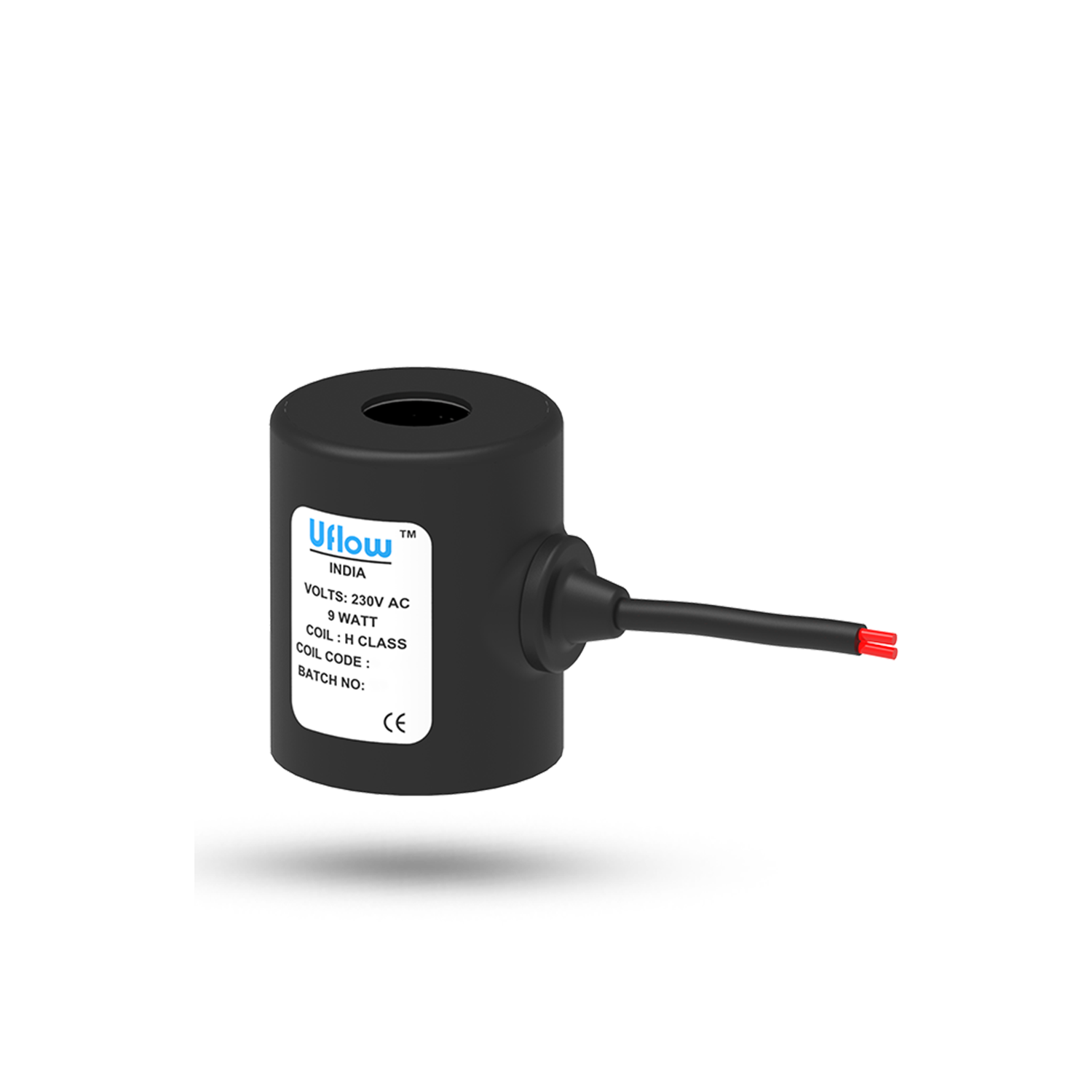

    • IP-68: Weather-proof for continuous submersion.

Coil Bore Diameter Options:

  • Sizes include 5mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 28mm, and 30mm for versatile applications.

Classifications:

  • Grade: H-Class (High Temperature).
  • Standards Compliance: IP-67 and IP-68 certifications for durability and reliability.

Voltage and Power Ratings:

  • Available Voltages:
    • 24AC, 110AC, 230AC, 12DC, and 24DC.
  • Power Options:
    • 24AC: 7W
    • 110AC: 8W or 30W
    • 230AC: 8W, 17W, or 30W
    • 12DC: 10W or 30W
    • 24DC: 11W or 30W

Duty Cycle:

  • Non-Latching: Continuous duty at 100%.
  • Latching: Operates with a momentary pulse in milliseconds, ideal for energy conservation.

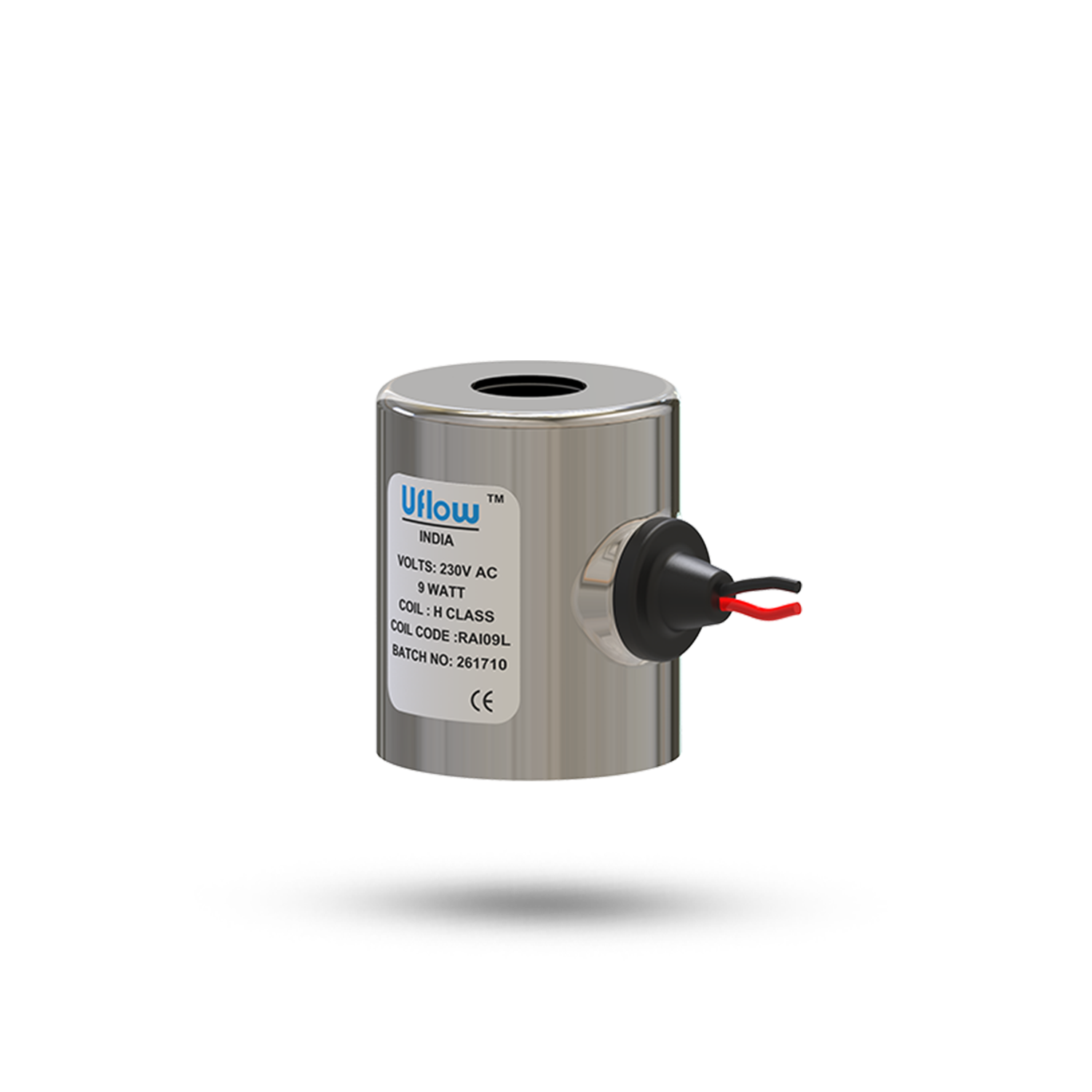

Latching Coil Benefits

  • Ideal for remote and battery-operated applications.
  • Minimizes heat buildup during prolonged energization, perfect for valves that need to remain open for extended periods.

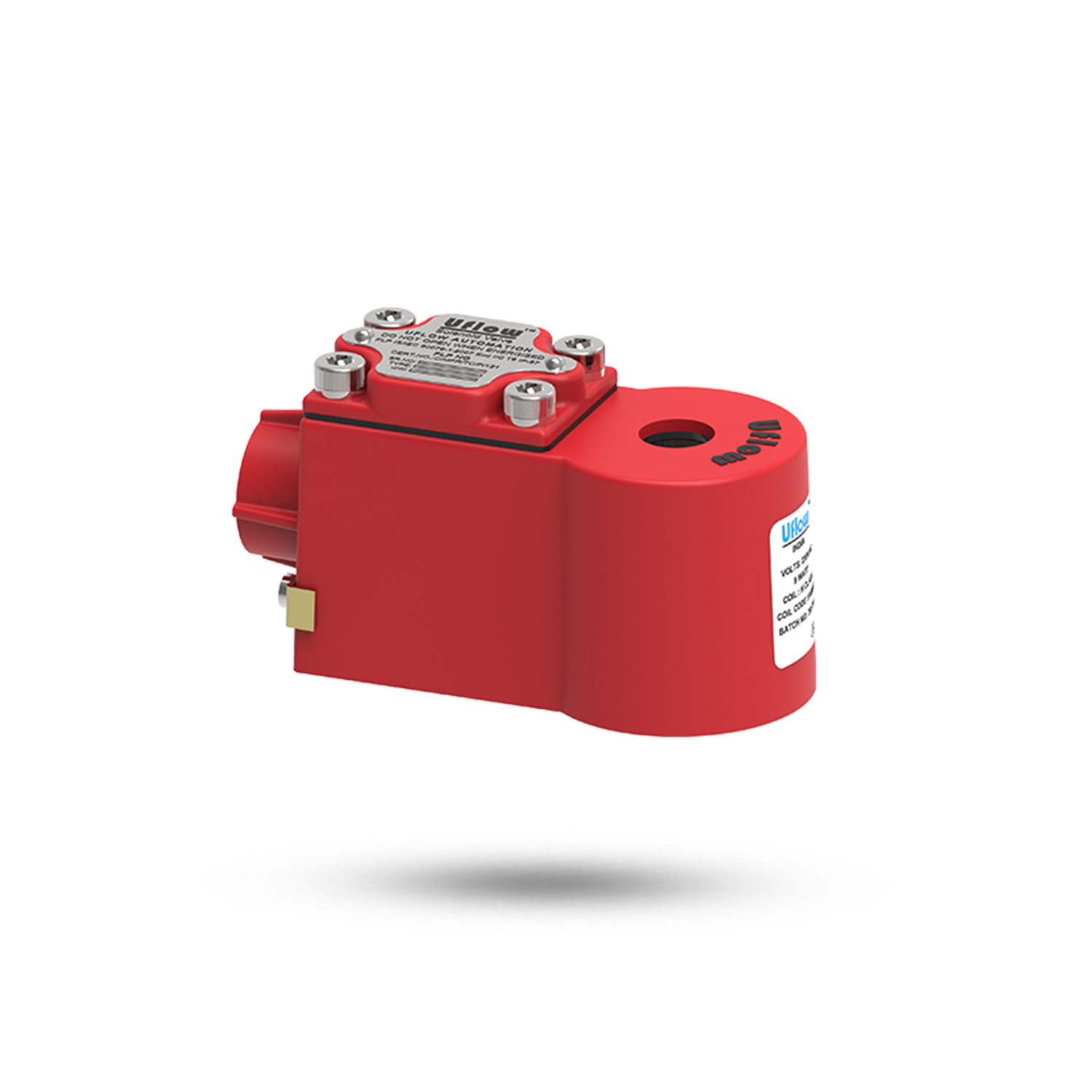

End Connections for Flame-Proof Coils

  • Thread options for compatibility:
    • ½” NPT
    • ¾” NPT
    • M20 x 1.5

Applications:

  • Industrial automation
  • Water treatment systems
  • Pneumatic and hydraulic operations

Why Choose Uflow Solenoid Coils?
Experience unmatched performance, durability, and efficiency with Uflow Solenoid Coils. Built to last and perform in extreme conditions, they’re the ideal choice for industrial and remote applications.

For more information, contact us today!

  • Energy Efficiency:
    • 90% power-saving series for reduced energy costs.
    • Latching coils for applications requiring prolonged valve openness without continuous power.
  • Enhanced Durability:
    • Flame-proof and weather-proof constructions resist harsh conditions.
  • Surge Suppression:
    • Included for high-wattage coils, ensuring safety and durability.
